Choosing the correct bowl liner is essential for maintaining crusher performance, product quality, and operating efficiency. For replacement parts, accurate measurements can help confirm the required dimensions when the original part number or machine information is unavailable.
Cone crusher bowl liners are available in different dimensions and configurations depending on the crusher model and application. Before ordering a replacement liner, accurate measurements can help verify the part and reduce the risk of receiving an incorrectly sized component.
If possible, also provide the crusher model, machine nameplate, existing liner photos, and any available part numbers together with the measurements.
When measuring a bowl liner, place the liner on a stable and level surface. Use suitable measuring tools and record each dimension carefully.
The following measurements can help verify the dimensions and profile of a cone crusher bowl liner before ordering a replacement.

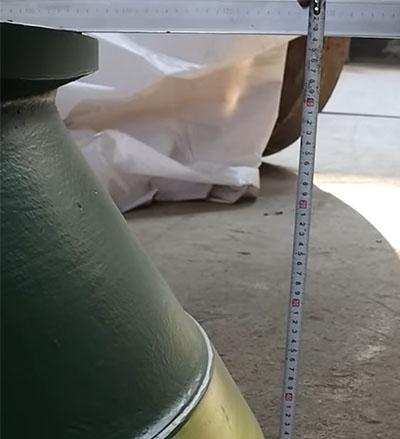

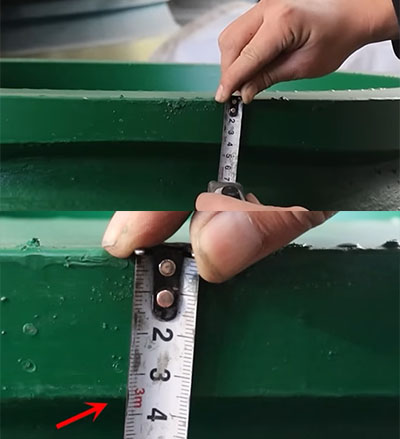

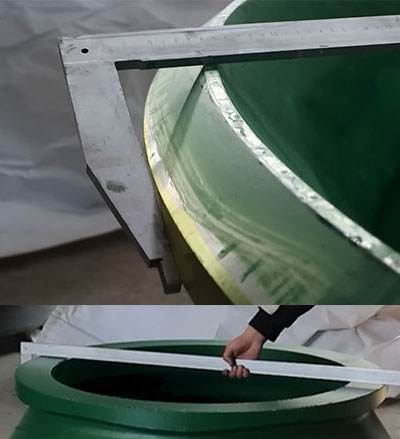

Measure the upper opening, overall height, lower dimensions, and relevant angles as shown in the illustrations above. These measurements help confirm the liner profile and overall fit within the crusher bowl.
For more accurate identification, we recommend providing the following information:
The more complete the information, the easier it is to confirm the correct replacement part.
Haikuang Heavy Industry manufactures replacement crusher wear parts, including Bowl Liners, for a wide range of cone crusher models and applications. Bowl liners can be produced according to confirmed dimensions, drawings, samples, or compatible part specifications.
For aftermarket replacement parts, proper dimensional verification is important before production. If you are unsure which measurements are required, send us photos of your existing bowl liner and crusher nameplate, and our technical team can help identify the necessary dimensions.
Note: Measurement requirements may vary between crusher models. Final dimensions should be confirmed against the specific crusher model, drawings, sample, or original part specifications before production.
